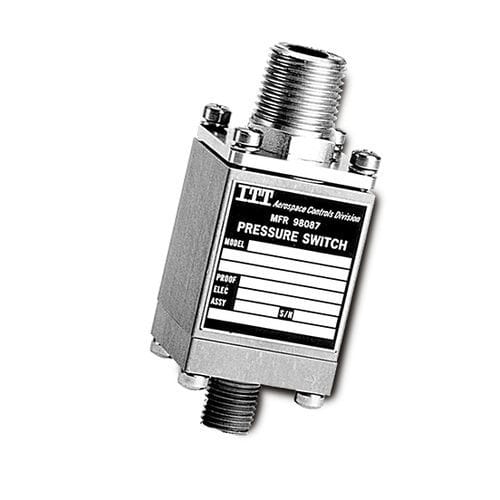

Diaphragm pressure switch 130P relativeO-ringthreaded
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Pressure type
- relative
- Mounting
- threaded, O-ring
- Process connection
- NPT 1/4, NPT 1/2
- Material
- stainless steel, aluminum
- Protection level
- explosion-proof, SIL, IP66, NEMA 4X, NEMA 7, NEMA 9, NEMA 13
- Other characteristics
- adjustable, compact, low-pressure, ATEX
- Pressure range
Min.: 1 psi
Max.: 600 psi
- Burst pressure
1,000 psi
- Process temperature
Min.: -40 °C
(-40 °F)Max.: 149 °C
(300 °F)
Description
Compact, versatile pressure switch well suited for hazardous or corrosive atmospheres. For low to mid-range pressure applications. Features efficient Nega-Rate® Belleville disc spring for superior set point stability and is field adjustable using 1/8" allen wrench through the port. Once adjustments are made and the switch is installed, it becomes tamper proof.
Specifications
Electrical: Snap action electrical switch assembly listed by Underwriters’ Laboratories, Inc., FM Approval and CSA International
Adjustment: 1/8" allen wrench through port
Shipping Weight: Approximately 16 ounces
*Temperature limits change with O-Ring selection. See Electrical Assembly specification sheet for Temperature Class Ratings.
