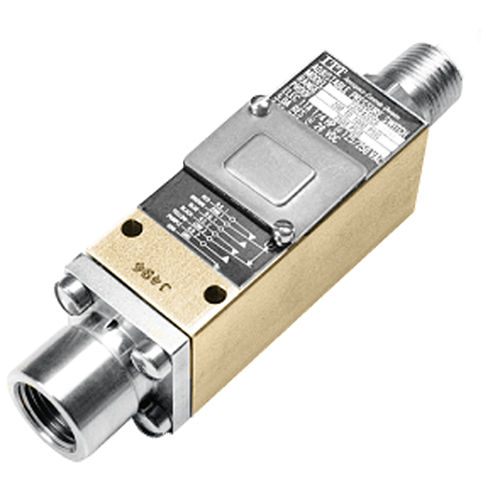

Diaphragm pressure switch 132P relativeO-ringthreaded
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Pressure type
- relative
- Mounting
- threaded, O-ring
- Process connection
- NPT 1/4, NPT 1/2
- Material
- stainless steel
- Protection level
- explosion-proof, SIL, IP66, NEMA 4X, NEMA 7, NEMA 9, NEMA 13
- Other characteristics
- adjustable, compact, stainless steel, explosion-proof
- Pressure range
Max.: 4,000 psi
Min.: 1 psi
- Burst pressure
2,000 psi, 6,000 psi
- Process temperature
Max.: 121 °C
(250 °F)Min.: -40 °C
(-40 °F)
Description
Compact adjustable hazardous area pressure switch for low to mid-range process applications. Efficient Nega-Rate® Belleville disc spring for set point stability and vibration resistance. Stainless steel wetted materials and hermetically sealed, explosion-proof electricals make this hazardous area pressure switch ideally suited for hazardous and corrosive media or environments.
Specifications
Adjustment: Internal, slotted adjustment nut with range scale
Shipping Weight: Approximately 20 ounces
* Temperature limits change with O-Ring selection. See Electrical Assembly specification sheet for Temperature Class Ratings.
