Piston pressure switch 232P
relativeO-ringthreaded

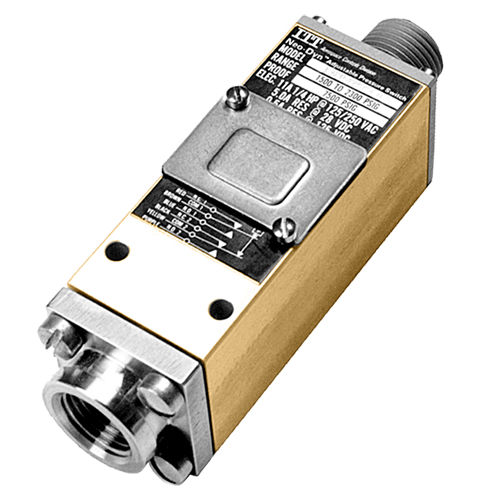

Piston pressure switch - 232P - Neo-Dyn - relative / O-ring / threaded
Piston pressure switch - 232P - Neo-Dyn - relative / O-ring / threaded
Piston pressure switch - 232P - Neo-Dyn - relative / O-ring / threaded - image - 2
Piston pressure switch - 232P - Neo-Dyn - relative / O-ring / threaded - image - 3
Add to favorites
Compare this product

Go to the Neo-Dyn website for more information

Characteristics

Technology
piston
Pressure type
relative
Mounting
threaded, O-ring
Process connection
NPT 1/4, NPT 1/2
Material
stainless steel
Protection level
explosion-proof, SIL, IP66, NEMA 4X, NEMA 7, NEMA 9, NEMA 13
Applications
for hydraulic applications
Other characteristics
adjustable, compact, high-pressure, stainless steel, explosion-proof, IP66, SIL
Pressure range

Max.: 12,500 psi

Min.: 25 psi

Burst pressure

7,500 psi, 9,750 psi, 13,500 psi, 15,000 psi

Process temperature

Max.: 121 °C
(250 °F)

Min.: -40 °C
(-40 °F)

Description

Compact, adjustable pressure switch for high pressure hydraulic process applications. Efficient Nega-Rate® Belleville disc spring for set point stability and vibration resistance. Stainless steel wetted materials and hermetically sealed, explosionproof electricals make this switch ideally suited for hazardous and corrosive media or environments. Specifications Adjustment: Internal, slotted adjustment nut with range scale Shipping Weight: Approximately 20 ounces * Temperature limits change with O-Ring selection. See Electrical Assembly specification sheet for Temperature Class Ratings
