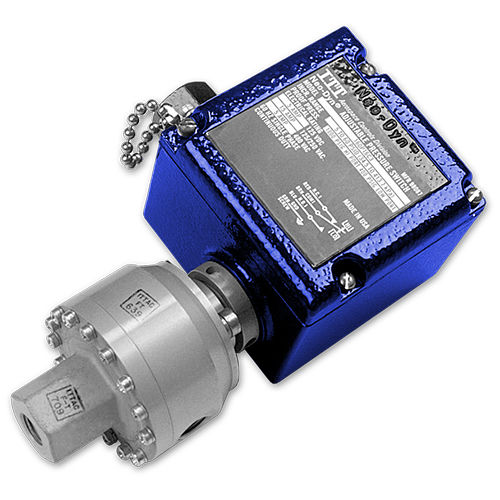

Diaphragm pressure and vacuum switch 180P vacuumO-ringNPT 1/2
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Pressure type
- vacuum
- Mounting
- O-ring
- Process connection
- NPT 1/4, NPT 1/2
- Material
- stainless steel, aluminum
- Protection level
- SIL, weather-resistant, NEMA 4X, NEMA 13
- Other characteristics
- adjustable
- Pressure range
Max.: 0.9 bar
(13.05 psi)Min.: 0 bar
(0 psi)- Burst pressure
350 psi
- Process temperature
Max.: 121 °C
(250 °F)Min.: -40 °C
(-40 °F)
Description
Adjustable vacuum switch with efficient Nega-Rate® Belleville disc spring sensing mechanism. Weather proof enclosure and stable set points makes this switch ideal for a wide variety of applications.
Specifications
Electrical: Snap action electrical switch recognized by Underwriters’ Laboratories, Inc. and CSA International
Adjustment: Concealed wrench flat adjustment with range scale
Shipping Weight: Approximately 3.5 pounds
*Temperature limits change with O-Ring selection
