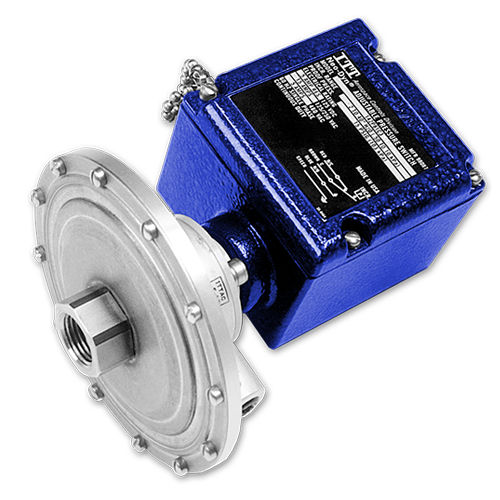

Diaphragm pressure switch 152P8 differentialO-ringthreaded
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Pressure type
- differential
- Mounting
- threaded, O-ring
- Process connection
- NPT 1/4, NPT 1/2
- Material
- stainless steel
- Protection level
- explosion-proof, SIL
- Other characteristics
- adjustable, low-pressure, with diaphragm seal
- Pressure range
Max.: 249 mbar
(3.61 psi)Min.: 1.2 mbar
(0.02 psi)- Burst pressure
100 psi
- Process temperature
Max.: 121 °C
(250 °F)Min.: -46 °C
(-51 °F)
Description
Ultra low adjustable hazardous rated differential pressure switch. Unique construction using efficient Nega-Rate® Belleville disc spring for stable set points and high proof pressure. Wide range of wetted materials makes this differential pressure switch series well suited for applications that formerly required the use of diaphragm seals.s.
Specifications
Electrical: Snap action electrical differential pressure switch recognized by Underwriters’ Laboratories, Inc. and CSA International
Adjustment: Concealed wrench flat adjustment with range scale
Shipping Weight: Approximately 4 pounds
*Temperature limits change with O-Ring selection
