Capillary temperature switch 132TC
adjustableNPT 1/2PVC

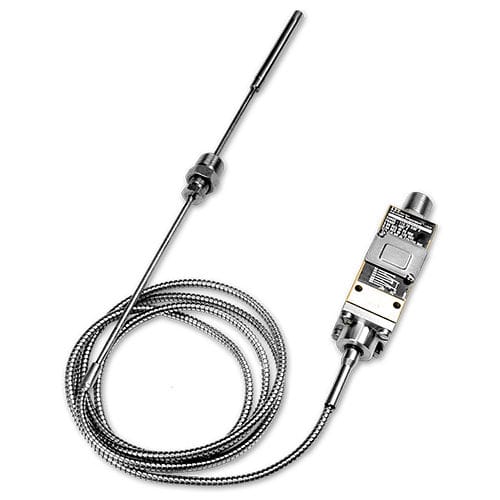

Capillary temperature switch - 132TC - Neo-Dyn - adjustable / NPT 1/2 / PVC

Capillary temperature switch - 132TC - Neo-Dyn - adjustable / NPT 1/2 / PVC - image - 2

Capillary temperature switch - 132TC - Neo-Dyn - adjustable / NPT 1/2 / PVC - image - 3

Add to favorites

Compare this product

Go to the Neo-Dyn website for more information

Characteristics

Heating technology

capillary

Type

adjustable

Process connection

NPT 1/2

Material

stainless steel, PVC

Protection level

explosion-proof, IP66, NEMA 4X, NEMA 7, NEMA 9, NEMA 13

Other characteristics

compact

Temperature

Min.: -40 °C
(-40 °F)

Max.: 82 °C
(180 °F)

Switching power : voltage

125 V, 150 V

Process temperature

Min.: -56 °C
(-69 °F)

Max.: 346 °C
(655 °F)

Description

Compact, adjustable temperature switch featuring the efficient Nega-Rate® Belleville disc spring for set point stability and vibration resistance. Available with all stainless steel exterior and interior construction together with a hermetically sealed, explosion-proof electrical assembly. Ideally suited for applications involving hazardous and corrosive medias or environments. Comes with capillary for remote mount up to 25 feet. Specifications Electrical: Snap action electrical switch assembly listed by Underwriters’ Laboratories, Inc., FM Approval and CSA International System Pressure: 1500 psig maximum Proof Pressure: 2250 psig Adjustment: Internal, slotted adjustment nut with range scale See Electrical Assembly specification sheet for Temperature Class Ratings. Shipping Weight: Approximately 3.5 pounds
