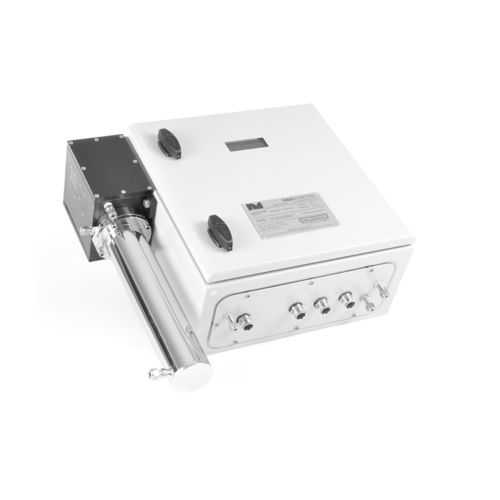

Optical detector LaserGas™ II MP

gasCO2CO

Very low detection limits ATEX and CSA certified Short response time LaserGas™ II Multi Pass combines extractive measurement with a compact analyzer design. The laser beam is coupled into a measurement cell, where it is reflected multiple times between two spherical mirrors in order to enhance the analyzer sensitivity. The monitor is a turn-key instrument. No other operations than connecting power, sample gas tubes and optional purge are required during installation. LaserGas™ MP provides a reliable and easy to use solution for a wide variety of applications. IECEx/ATEX Zone 2 CSA Class 1/Div 2 A,B,C,D Short response time (flow depended) Very low detection limits (ppb for most gases) No interference from background gases Stable calibration No zero drift Extractive gas analysis in a controlled environment No moving parts, no consumables, turn-key instrument ATEX and CSA certified CH4 CO ppm CO2 ppm H2S HCl HCl in VCM HCN N2O ppm NH3 NO NO2 O2 C2H2 H2 Dual Gas: CO+CO2, CO+CH4 Chemical industry Petrochemical industry (contaminants like H2S in NG) Industrial gas (impurities in pure gases) H2 purity measurement Semiconductor industry Power plants (stack testing of corrosive emission gases) H2S emission monitoring (pulp & paper, refineries, bio-gas production) ..and more
