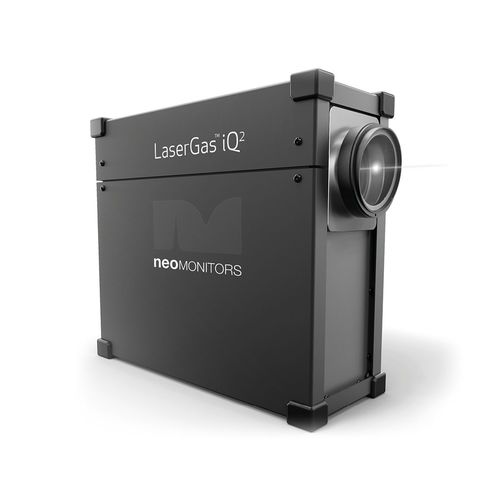

Oxygen analyzer LaserGas™ iQ2

flue gasCOCH4

Multi-component analyzer No interference from background gases In-situ measurement LaserGas™ iQ2 analyzer is the first to measure up to four gases (O2, CO, CH4, H2O) and temperature depending on configuration, which eliminates the need for multiple units for combustion analysis. The cutting-edge design and ground-breaking functionality, ensures that the instrument delivers unmatched reliability and durability. Customers may replace existing analyzers where explosion risks or high maintenance issues are a huge concern. IECEx/ATEX Zone 1 CSA Class 1/Div 2 A,B,C,D O2 + CO as standard configurations Add on component: CH4 H2O % Temperature No interference from background gases Factory calibrated No zero drift Transceiver configuration Multiple configurations Automatic gain In-situ measurement Integrated span check option (Application dependent) Combustion analysis FCC units Boilers Process heaters Electrostatic precipitators VCM waste gas recovery Reformer gas Incineration Up to 5 measuring components O2, CO, CH4, H2O and temperature Can handle a typical combustion process up to 2372 °F/1300°C Reduced installation cost Low maintenance cost Easy to install transceiver, one unit ensures easy alignment Double path length increases absorption signal for low concentration Transceiver can be mounted on coldest side of stack in very hot environments Well proven technology The design has flexibility to measure additional gases
