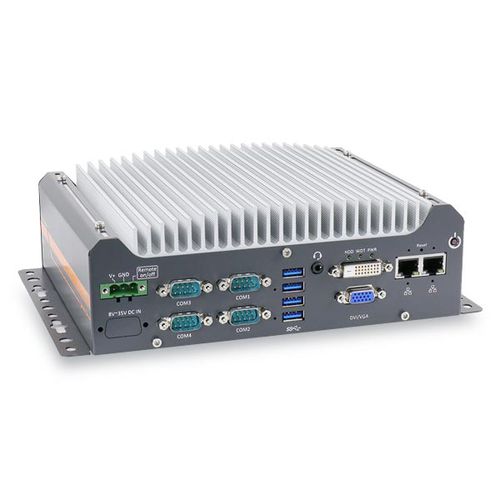

Embedded computer Nuvo-7505D

8th Generation Intel® Core™9th Generation Intel® Core™DVI

Intel® 9th/ 8th-Gen Core™ i7/i5/i3 compact fanless embedded computer with isolated DIO, isolated COM and 2x GbE Compact 255 x 173 x 76 mm footprint Intel® 9th/ 8th-Gen Core™ 35W LGA1151 CPU Rugged, -25°C to 60°C fanless operation 2x GbE and 4x USB3.0 Up to 6x COM ports, optional isolation on ports 1~ 4 VGA + DVI dual display outputs Accommodates one 3.5" or 2.5" HDD/ SSD 8-CH isolated DI and 8-CH isolated DO Nuvo-7505D is a cost-effective, compact and yet powerful fanless embedded computer with a 255 x 173 x 76 mm footprint. Powered by an Intel® 9th/ 8th-Gen Core™ hexa/ octa core CPU, it offers more than 50% computation performance improvement over the previous generation. Nuvo-7505D is designed to be simple and compact while retaining essential elements of a rugged embedded fanless solution. It features I/Os such as 2x GbE, 4x USB3.0 and 6x COM ports for common industrial applications. In addition to the M.2 2280 SATA SSD, it can also support a 2.5" SSD/ HDD or a 3.5" HDD. Besides, Nuvo-7505D offers isolated DIO and isolated COM, which can protect the controller against ground loops in harsh environments. The Nuvo-7505D is a cost-effective solution that has retained quality materials all Neousys systems utilize; and the design flow/ stringent test procedures it must endure. It is a fanless embedded platform that has hit the sweet spot in terms of cost, size and performance. Nuvo-7505D is an ideal fanless embedded solution for various industrial applications.
