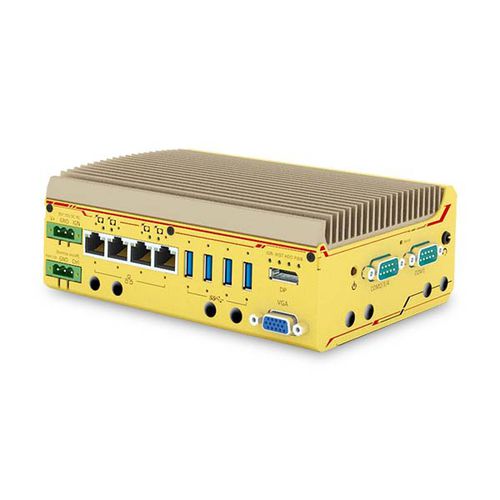

Embedded computer POC-551VTC

vehicle-mountquad-coreCAN bus

AMD Ryzen™ V1000 Ultra-compact In-vehicle Controller with PoE+, DIO and Isolated CAN bus AMD Ryzen™ embedded V1605B quad-core 15W CPU -40°C to 70°C rugged wide temperature fanless operation Four IEEE 802.3at PoE+ ports with screw-lock One isolated CAN bus port for in-vehicle communication One M.2 socket and three mPCIe sockets M.2 2280 M key NVMe (Gen3 x2) socket for fast storage access 4-CH isolated DI and 4-CH isolated DO 8~35V DC input with built-in ignition power control E-Mark and EN 50155 certificate POC-551VTC is the next generation ultra-compact, fanless in-vehicle controller offering performances never-seen-before in this form factor. Featuring AMD Ryzen™ Embedded V1000 4-core/ 8-thread processor(V1605B), POC-551VTC delivers up to 3x times the CPU performance compared to previous POC series. It combines finesse performance, extraordinary reliability and affordability for versatile in-vehicle applications. POC-551VTC offers four 802.3at PoE+ ports to supply 25W power to device such as IP cameras. As wireless connectivity is essential for modern invehicle application, POC-551VTC with built-in one M.2 and three mini-PCIe are more applicable for in-vehicle use nowadays. It also integrates CAN bus for in-vehicle communication, and isolated DIO for sensor/ actuator control.
