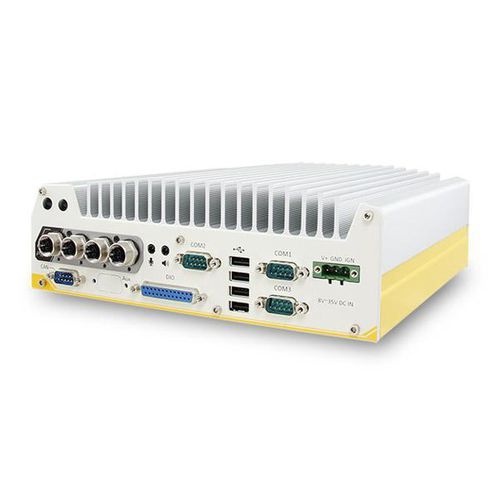

Embedded computer Nuvo-5100VTC series

vehicle-mount6th generation Intel® Core™SATA

Intel® 6th-Gen Skylake Core™ i7 in-vehicle fanless embedded computer with 4x M12 PoE+ ports, DIO, CAN bus, RAID and EN50155 certification Supports Intel® 6th-Gen Core™ i7/i5/i3 LGA1151 CPU 4x 802.3at Gigabit PoE+ ports via M12 connectors On-board CAN bus for in-vehicle communication 4-CH isolated DI and 4-CH isolated DO 2x SATA ports for two 2.5" SATA HDD/SSD, with one hot-swappable HDD tray, supporting RAID 0/1 4x full-size mini-PCIe sockets with SIM support 8~35V wide-range DC input with built-in ignition control EN50155 certificate Nuvo-5100VTC is a state-of-the-art in-vehicle fanless embedded controlloer in compliant with EN50155 certificate. Featuring Intel® 6th-Gen Core™ CPU, it exhibits superb CPU and GPU performance for various in-vehicle applications. Nuvo-5100VTC offers four 802.3at PoE+ ports to supply 25W power to the connected device. They are implemented using M12, x-coded connectors, which guarantee extremely rugged connectivities in shocking/vibrating environments. Two more Gigabit Ethernet ports by RJ-45 are available for data communication. You can also utilize four internal mini-PCIe sockets with corresponding modules for 3G/4G/WIFI communication.
