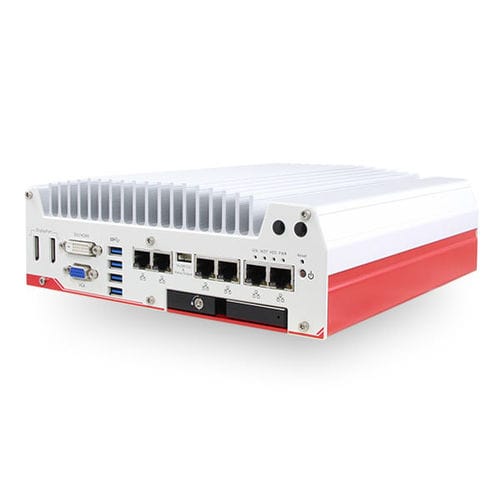

Embedded computer Nuvo-5000LP

6th generation Intel® Core™DVIVGA

Intel® 6th-Gen Core™ i7/i5/i3 fanless rugged embedded computer with 6x GbE, MezIO™ interface & low-profile chassis Intel® 6th Gen Core™ i7/i5/i3 35W/65W socket-type CPU MezIO™ interface for easy function expansion Rugged, wide temperature range from -25°C to 70°C fanless operation Up to 6x GigE ports, supporting 9.5 KB jumbo frame Up to 32 GB, DDR4-2133 SODIMM One hot-swappable 2.5” HDD/SSD and one fixed 2.5” HDD/SSD, supporting RAID 0/1 Accommodates two 2.5" SATA HDD/SSD with RAID 0/1 VGA/DVI/DP triple independent display, supporting 4K2K 77 mm low-profile design Nuvo-5002LP/5006LP is the low-profile version of Nuvo-5000 family. It features a low-profile chassis, which reduces its height to 77 mm, and remains extraordinary 25°C to 70°C operating temperature. For those demanding varied computing power, Nuvo-5002LP/5006LP supports socket-type CPU for flexible CPU installation. You can choose Intel® 6th Gen Core™ i7/i5/i3, from 35W to 65W TDP, according to your performance consideration and operating environment. Nuvo-5002LP/5006LP fanless embedded computer inherits comprehensive I/O functions, such as GbE, USB 3.1 Gen1/ USB 2.0, COM and VGA/DVI/DP, from Nuvo-5000E/P. It also incorporates Neousys' MezIO™ interface for further I/O expansion. By installing optional MezIO™ module, Nuvo-5002LP/5006LP turns immediately from a typical embedded controller to a ruggedized application platform including 11x COM ports, 32 DIO channels, ignition power control, or your customized application-specific I/O.
