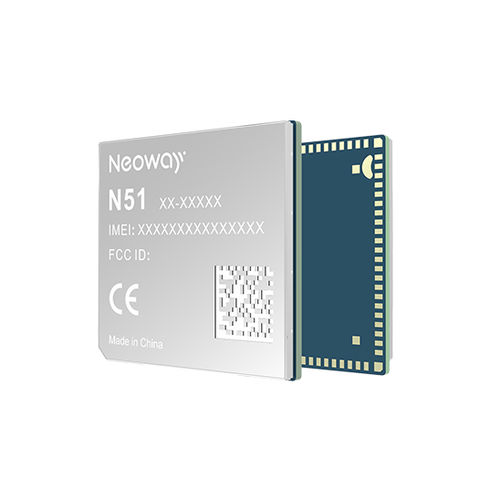

Data transmission wireless module N51

3GGSM/GPRS

N51 is an industrial-grade 3G cellular module supports GSM and WCDMA. With an LGA package, its dimensions are only 30.0 mm x 28.0 mm x 2.5 mm. It has industrial-grade high performance and is suitable for the development of wireless meter reading terminals, industrial control, handheld POS, and other IoT equipment. OpenCPU eSIM optional Pin2Pin N720 / N75 IPv4 / IPv6 -40℃ to 85℃ Supply voltage - 3.3 V to 4.3 V, Typ.: 3.8 V Dimensions - 30.0 mm x 28.0 mm x 2.8 mm Package - 100-pin LGA Storage - Optional (ROM: 128 MB; RAM: 64 MB) Interface - MIC x 1, SPK x 1 ADC x 1 IIC x 1 (Open) SPI x 1 (Open) UART x 1 PWRKEY_N RESET_N SLEEP NET_LIGHT USIM (1.8 V / 3.0 V) Frequency bands - UMTS: B1/B2/B5/B8 GSM/GPRS: 850/900/1800/1900 Mhz Protocol - TCP/UDP/TLS/MQTT/DNS/FTP/HTTP/HTTPS/NTP/NITZ ESD - VBAT: ±8 kV / ±15 kV GND: ±8 kV / ±15 kV ANT: ±8 kV / ±15 kV Other: ±4 kV / ±8 kV Region - Global
