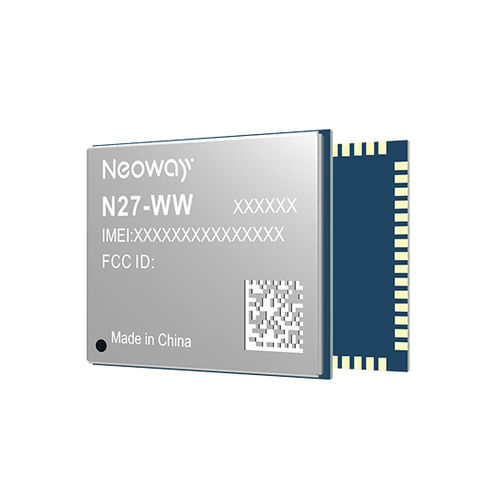

N27 is an NB-IoT/eMTC module specially designed for M2M and IoT applications. Adopting the 3GPP Rel.14 LTE technology, it delivers 1119 kbps downlink and 588 kbps uplink data rates. N27 supports location technology Gen9 VT (GPS, GLONASS, BDS, Galileo, and QZSS). The integrated GNSS greatly simplifies product design, and provides faster, more accurate and more reliable positioning functions. N27 integrates industrial UART interfaces and supports various network protocols, such as CoAP, UDP, TCP, and MQTT. N27 has excellent RF performance, low power consumption, and an ultra-wide operating temperature range. With various industry-standard interfaces and abundant functions (USB serial drivers for Windows 7/8/8.1/10, Linux, and Android), this module is an optimal option for energy metering, telematics, smart city, tracking, and environmental monitoring, and other scenarios.
Open ThreadX
Cat.M1/Cat.NB2/GPRS
CLASS 3/5
GNSS
-40℃ to +85℃
Supply voltage - 3.1V to 4.3V, Typ.:3.6V
Dimensions - 24.0 x 18.0 x 2.3mm
Package - 76-pin LGA
Storage - Optional (ROM: 512Mb or 1Gb; RAM:256Mb)
Interface -
PCM/I2S
ADC*2
I2C*1 (Open)
SPI*1 (Open)
UART*2
PWRKEY_N
WAKEUP_IN
WAKEUP_OUT
NET_LIGHT
USIM(1.8V)
LCD(EBI2)
Frequency bands -
-W3:
eMTC: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
-WW:
NB-IoT: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B28/B71/B66/B85
eMTC: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85
