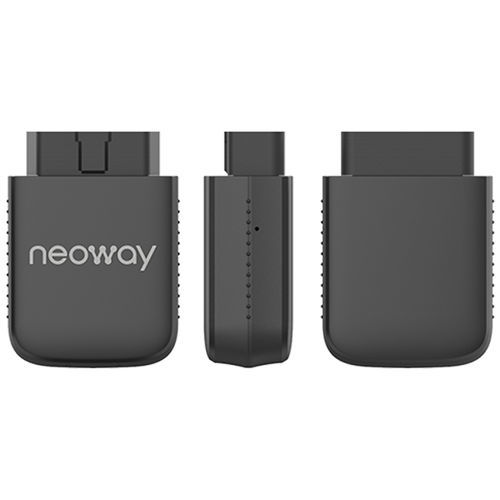

WiFi diagnostic tool N2610-EA

BluetoothECU programmingfault code reading

A 4G intelligent OBD for telecom operators, car pre loading, fleet management, UBI insurance, car rental, dealer vehicle management Commercial and passenger vehicles Driving behavior algorithm Wide working temperature Low power consumption GNSS Platform - Neoway LTE module - N75 CPU - Modem: ARM Cortex-A7, 1.3 GHz OBD MCU: ARM 32-bit Cortex-M3 CPU Core Frequency bands - Europe: LTE FDD: B1/B3/B5/B7/B8/B20/B28 LTE TDD: B38/ B40/B41 UMTS: B1/B5/B8 GSM/GPRS/EDGE: 900/1800 MHz Wi-Fi - 802.11 b/g/n, hotspot supporting GNSS - GPS, GLONASS Hot start time: 5s Cold start time: 31s Sensitivity: -159 dBm Positioning accuracy: 2.5 m (Open sky) Sensor - G-sensor/Gyroscope(Optional) Memory - 4 MB (32 MB Optional) Protocols - ISO 9141-2; ISO 14230-4 (KWP2000) ISO 15765-4 (11/29Bit ID, 250/500 kbaud) SAE J1850 VPW SAE J1850 PWM SAE J1939 Power - 9 V to 36 V Backup battery - 150 mAh (Optional) Environmental condition - Operating temperature: -30℃ to 70℃ Storage temperature: -30℃ to 70℃ Operating humidity: 5% to 95% noncondensing Certifications - CE, RoHS, FCC, UN38.3, PRCRB, AT&T
