It is suitable for the management of motorcycles, cars, trucks, 48V electric vehicles
Cat.1&GPRS
Microphone recording Report
Wi-Fi location
Remotely cutting off power
FOTA
Platform - Neoway Cat.1 module - N58

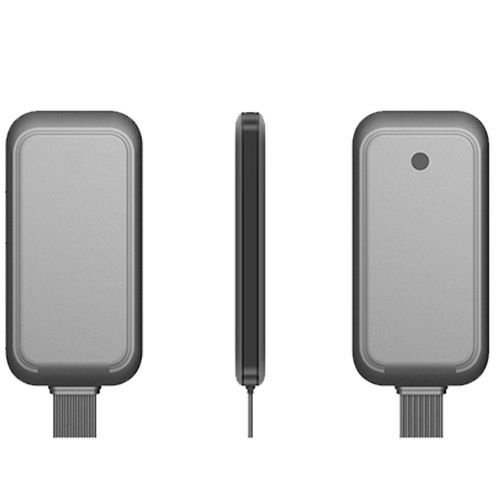

Dimensions - 85.0 mm × 40.0 mm × 12.5 mm
Frequency bands - China: LTE FDD: B1/B3/B5/B8;
TDD: B34/B39/B40/B41;
900/1800 MHz
Europe: FDD: B1/B3/B5/B7/B8/B20/B28;
TDD: B38/B39/B40/B41;
850/900/1800/1900 MHz
Positioning - /AGPS/LBS
GNSS - /AGPS/LBS/Wi-Fi location
Hot start time: 1s
Cold start time: 32s
Tracking sensitivity: -162 dBm
Acquisition Sensitivity: -156 dBm (Hot start)/-148 dBm (Cold start)
Positioning accuracy: 2.5 m CEP50 (Open sky)
Battery - 170 mAh internal battery (work 10 minutes)
SIM Card - Micro SIM/eSIM
Ingress Protection Rating
Sensor - G-sensor (Optional)
Power consumption - <10 uA@3 V (Deep sleep)
<80 mAh@3 V (Average operating current)
Environmental condition - Operating temperature (with battery): -20°C to 70 °C
Storage temperature range (without battery): -40°C to 85°C
Operating humidity: 5% to 95% non-condensing
Optional - Light sensor
Temperature sensor
BLE4.2
