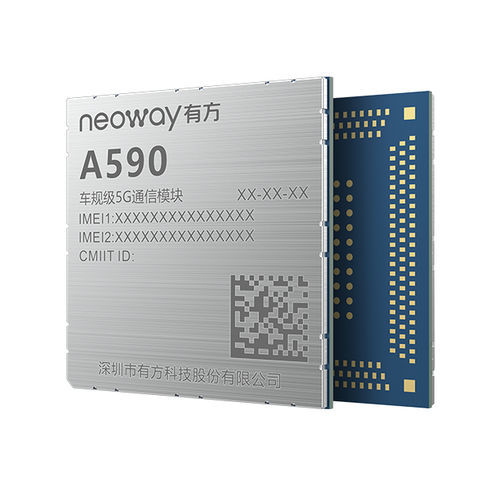

USB wireless module A590

LTE5GPCIe

A590 is a 5G V2X cellular module which is designed specially for the smart IoV industry. It supports both 5G-SA and 5G-NSA networking modes. The module has excellent RF performance and covers a wide range of frequency bands. It also supports the 4G and 3G networks and can be operated in Sub-6 GHz bands. The A590 series can be used in most regions including China, Europe, Southeast Asia where 5G networks are deployed. It also supports 4G and 3G networks for application in areas not covered by 5G networks. Sub-6G+V2X Full-function, compact size DSDA IATF16949 Rich network protocols Supply Voltage - 3.3 V to 4.3 V, typical: 3.8 V V2X: 5 V (DC) Dimensions - 52.0 mm x 52.0 mm x 2.65 mm Package - LGA Operating temperature - -40℃ to +85℃ Interface - PCIe Gen 3 I2S & I2C UART RGMII USIM (1.8 V/3.0 V) ×2 Frequency Bands - n1/n3/n5/n7/n8/n20/n28/n39/n40/n41/n77/n78/n79; B1/B3/B5/B7/B8/B20/B26/B28/B34/B38/B39/ B40/B41 ; UMTS: B1/B3/B5/B8 V2X: Globle -ITS 5.9 5855-5925 Protocol - RNDIS/ECM/RMNET/IPv4/IPv6 Region - China/ Europe/SEA
