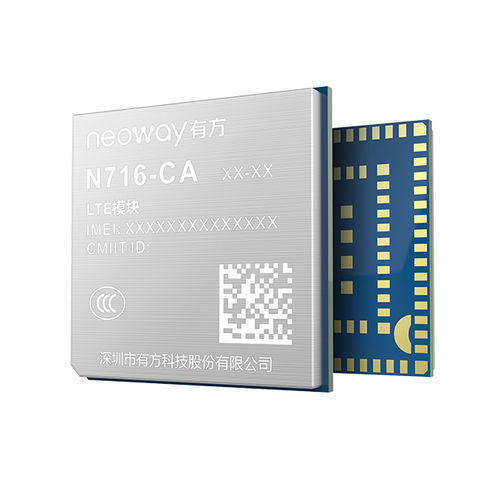

USB wireless module N716

LTE4G

N716 is the LTE Cat.1 module that supports all network modes. It has stable performance. The module's dimensions are 19.6 mm x 19.6 mm x 2.45 mm. It can work on the 2G, 3G, and 4G networks of all Chinese carriers and is applicable to wireless meter reading, telematics, handheld POS and other IoT equipment. Small Dimensions Blue Tooth 4.2 Open CPU Expandable internal storage -40℃ ~ 85℃ Supply voltage - 3.4 V ~ 4.2 V, typical: 3.8 V Dimensions - 19.6 mm x 19.6 mm x 2.45 mm Package - 122-pin LGA Storage - ROM+RAM: 64 Mb+128 Mb Interface - POWER/PWRKEY_N/RESET_N UART PCM/I2C/SPI/GPIO ADC 1.8 V/3.0 V USIM interface NET_LIGHT Cellular antenna interfaces Frequency bands - FDD: B1/B3/B5/B8 TDD: B34/B39/B40/B41 Protocol - TCP/UDP/TLS/MQTT/DNS/FTP/HTTP/HTTPS/NTP/NITZ ESD - VBAT: ±8 kV/±15 kV GND: ±8 kV/±15 kV ANT: ±8 kV/±15 kV Other: ±4 kV/±8 kV Region - China (mainland) Certifications - SRRC, RoHS
