Water pump NSP-A

oilfor gassolenoid-driven

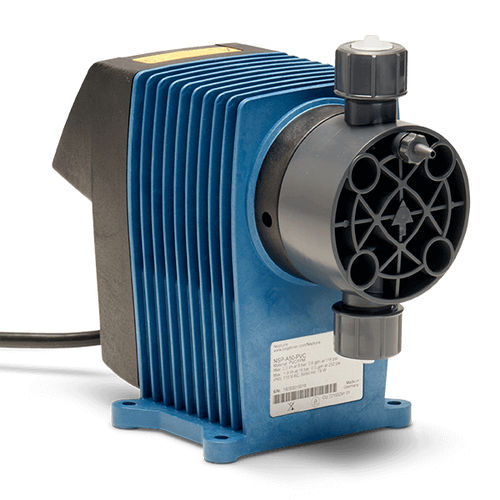

Neptune NSP-A Series Solenoid Metering Pumps are analog-controlled models that ensure precise pump settings using a keypad and graphical display. The NSP-A Series offers dosing head manual venting, external control via standard signal (0/4-20 mA), level input with early warning and main alarm, and release input. LIQUID HEAD MATERIALS OF CONSTRUCTION PVC, PP, PVDF DIAPHRAGMS PTFE CAPACITY 0.09 gph (0.34 L/h) to 3.43 gph (13 L/h) • Capacity range to 3.96 gph (15 L/h), up to 232 psi (16 bar) • Wide range power supply 110 - 240 VAC, -10% / +5%, 50/60 Hz, 25 W • Double-ball valves ensure accurate dosing • Materials: PVC, PP, PVDF and ACRYL • Wall and floor mounting possible without a bracket Neptune™ is pleased to announce the availability of the new Pump Series – NXP Series Stepper Motor Pumps and NSP Series Solenoid Pumps available in manual, analog, and pulse control. Featuring capacity ranges from 0.09 gph (0.34 L/h) to 8.1 gph (30.66 L/h) and back pressure capabilities of 43 psi (3 bar) to 232 psi (16 bar), NXP and NSP Series are ideal for chemical applications, requiring reliable and accurate dosing. NXP and NSP Series pumps are available with a variety of liquid head materials: PVC, PVDF, Polypropylene, Stainless Steel*, and Acrylic* materials
