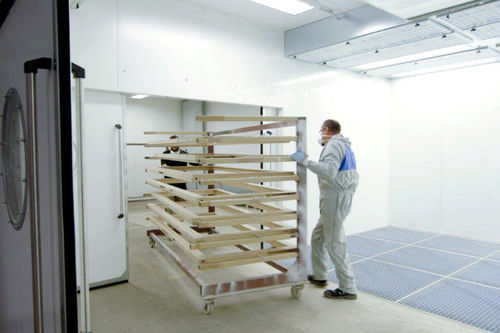

Paint suction unit PAINTLINE series

Paint fume extraction systems from the PAINTLINE product line offer a sophisticated complete solution for clean air in your paint shop. The surface finishing requirements in coating operations are high. Frequent colour changes, various paint systems, short deadlines, different shapes, sizes and materials of the parts to be coated are commonplace. The requirements placed on the paints and lacquers to be processed as well as on environmental compatibility and occupational health and safety are constantly increasing. These requirements and the fact that solvents and paints have a greater density than air and so fall to the floor, were the basic idea behind the development of the PAINTLINE product line for paint fume extraction. It led to the creation of an extraction system installed near the floor or using the underfloor principle. Because, dust- and draught-free zones are the most important requirements for high-quality painting and varnishing. For perfect ventilation of the paint booth, the most effective effect is achieved by underfloor extraction and the circulation/supply air guidance from above. The base module is suitable for normal painting operation with occasional to hourly painting operations with a ventilation system performance of 7,500 or 9,500 m³/h. It features a FC-controlled fan and high-quality filter materials. The system enables surface or underfloor extraction and can optionally be equipped with a plate heat exchanger or a circulation system for heat recovery.
