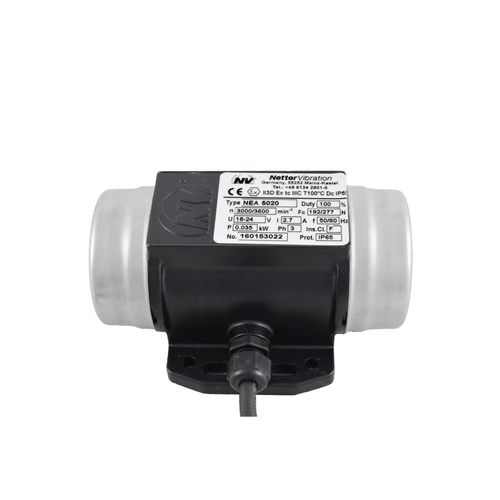

Electric vibrator NEA series

externalcircularconcrete

Series NEA electric external vibrators are used whenever, for example conveyors, vibrating tables or sieves need to be driven. In addition, these devices can loosen material blockages adhesion in silos. The special feature of the NEA is its maintenance-free operation, even in rough environment conditions. The NEA single phase units run at 3,000 min-1 with a 230V, 50 Hz power supply. Additional voltages are available and they are also designed for operation at 60 Hz, the speed of rotation then lies at 20 % above the values at 50 Hz. The unbalance is adjusted if necessary. Generously dimensioned rolling bearing guarantee high operational safety. • Power supply 230/115 V AC • Integrated connector box • Maintenance free operation • Smooth housing surface • Stainless steel unbalance covers • Protection IP 66-7, ISO class F • ATEX and stainless steel versions available • Relieving product obstructions • Loosening adhesions
