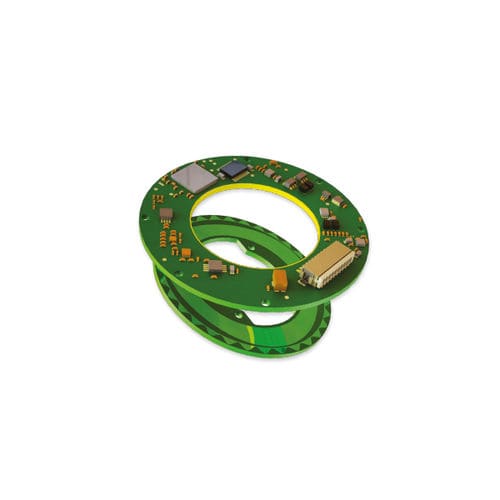

Absolute rotary encoder VLX-60

hollow-shaftsingle-turnnon-contact

Features ● Lightweight miniature absolute rotary encoder ● Hollow floating shaft ● No bearing or other contacts ● High precision ● High tolerance to EMI, RFI, and magnetic fields ● Digital interfaces for absolute position General ◌ Angular resolution: 18-20 bit ◌ Maximum tested static error: ±0.015° ◌ Extended accuracy static error: ±0.010° ◌ Maximum operational speed: 4,000 rpm ◌ Measurement range: Single turn, unlimited ◌ Rotation direction: Adjustable CW/CCW (Default same direction from the bottom side of the encoder Mechanical ◌ Allowable mounting eccentricity: ±0.1 mm ◌ Allowable axial mounting tolerance: ±0.1 mm ◌ Rotor inertia: 1,930 gr · mm² ◌ Total weight: 14 gr ◌ Outer diameter / Inner diameter / Profile: 60 / 25 / 8 mm ◌ Material (stator, rotor): FR4 ◌ Nominal air gap (stator, rotor): 0.6 mm Electrical ◌ Supply voltage: 5V ± 5% ◌ Current consumption: 90 mA ◌ Interconnection (default): Connector ◌ Interface: SSi / BiSS ◌ Output code: Binary ◌ Serial output: Differential RS-422 ◌ Clock: Differential RS-422 ◌ Clock frequency: 0.1 ÷ 5.0 MHz ◌ Position update rate: 35 kHz (Optional - up to 375 kHz) Environmental ◌ EMC: IEC 6100-6-2, IEC 6100-6-4 ◌ Operating temperature: -25°C to +65°C ◌ Storage temperature: -40°C to +100°C ◌ Relative humidity: 98% Non condensing ◌ Shock endurance: 100 g for 11 ms ◌ Vibration endurance: 20 g 10 – 2000 Hz ◌ Protection: IP 40
