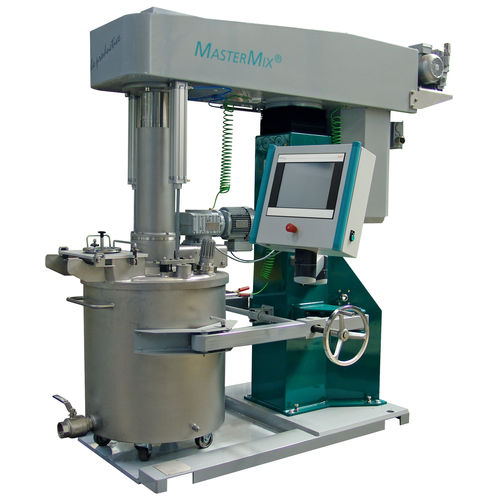

The MasterMix® Dissolver is used for dispersing solids in liquids. The product is mixed in batches in an exchangeable tank. The speed of the high-speed dispersion disk is adjusted via a frequency-controlled drive. The height of the dispersion disk in the tank can be adjusted by means of a hydraulic lifting column.
• The dissolver is a fast, high-capacity disperser with a wide range of speeds and high level of efficiency
• Push-button speed control
• Speed indicator and automatic speed reduction
• The product is accelerated radially by the dispersion disk, deflected to the top and bottom at the tank wall and directed back to the dispersion disk through formation of a vortex
• Shear forces around the circumference of the toothed disk result in highly efficient dispersion, good wetting and deagglomeration
• For high-viscosity products, a tank wall scraping device can aid the mixing and dispersing process
• Hydraulic lifting/lowering device
• Push-button stroke adjustment
• Adjustable tank clamping mechanism
• Stainless steel shaft and dispersion disk; additional product-specific mixing tools available depending on the application
• Manufactured in accordance with CE guidelines
