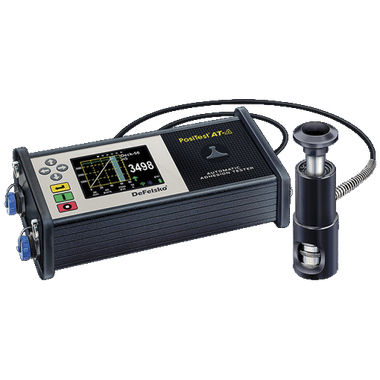

Pull-off adhesion tester. With electronically controlled hydraulic pump. Measures adhesion of coatings to metal, wood, concrete and other rigid substrates.
• Electronically controlled hydraulic pump automatically applies smooth and continuous pull-off pressure. Greatly reduces user effort and the risk of influencing the pulling process.
• User adjustable pull rate, pull limit and hold time.
• Internal memory stores maximum pull-off pressure, rate of pull, test duration, dolly size, pass/fail, nature of fracture and user notes for 100,000 pulls in up to 1,000 batches.
• Impact and scratch resistant color touch screen with keypad for operation with or without gloves.
• Built-in rechargeable battery performs over 200 tests per charge. Continue testing with AC power while the battery recharges.
• Environmentally sealed enclosure – weatherproof, dustproof and shockproof - meets or exceeds IP65.
• Rubberized, shock absorbing grips provide a stable, skid-resistant footing.
• Self-aligning aluminum dolly enables accurate measurements on smooth or uneven surfaces.
10, 14, 20 or 50 mm dollies maximize capability and measurement resolution across a wide range of bond strengths. Maximum pull-off pressure by dolly size...
• User selectable measurement units: psi (pounds per square inch), MPa (Megapascal), Nmm2 (Newtons per millimeter square) or Newton (force).
