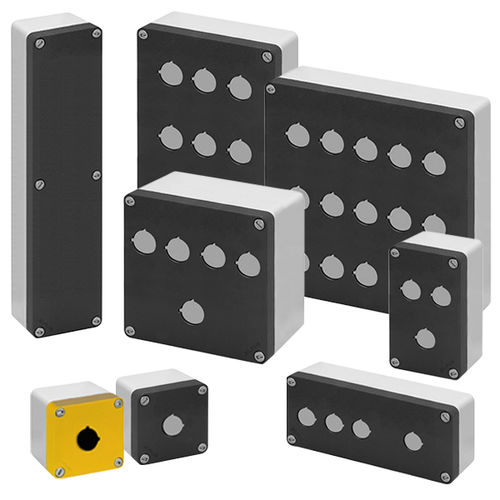

Push-button enclosure wall-mountrectangularaluminum
Add to favorites
Compare this product
Characteristics
- Construction
- wall-mount
- Configuration
- rectangular
- Material
- aluminum
- Application
- outdoor, indoor, push-button, for electrical installation
- Protection level
- IP66
- Other characteristics
- empty, screw cover, without hole, control
- Width
Max.: 200 mm
(7.9 in)Min.: 85 mm
(3.3 in)- Height
Max.: 260 mm
(10.2 in)Min.: 85 mm
(3.3 in)- Depth
Max.: 85 mm
(3.35 in)Min.: 65 mm
(2.56 in)
Description
Available sizes: 85x85mm, 85x140mm, 85x200mm, 85x260mm, 85x360mm, 140x140mm, 140x200mm, 200x200mm, 200x260mm
* Base height: 65mm and 85mm
* The enclosure base may be provided with or without hole for cable entry.
* The enclosure lid is fastened to the base through 4/6 screws depending on the enclosure size.
* The enclosure lid may be supplied with or without holes.
* Painted or unpainted execution.
* Certifications: CE, UL and EAC.
