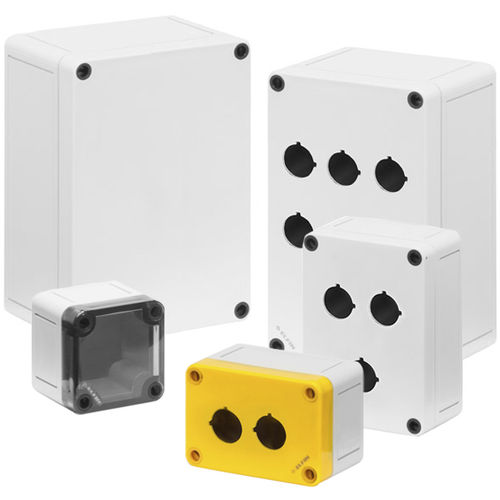

Push-button enclosure wall-mountrectangularsquare
Add to favorites
Compare this product
Characteristics
- Construction
- wall-mount
- Configuration
- rectangular, square
- Material
- polycarbonate, polystyrene
- Application
- industrial, push-button, for electrical installation
- Protection level
- IK 07, IP66, IP69K
- Other characteristics
- empty, screw cover, without hole, control
- Width
Max.: 254 mm
(10 in)Min.: 50 mm
(2 in)- Height
Max.: 361 mm
(14.2 in)Min.: 52 mm
(2 in)- Depth
Max.: 81 mm
(3.19 in)Min.: 35 mm
(1.38 in)
Description
Available sizes: 50x52mm, 65x50mm,65x65mm, 65x94mm, 94x94mm, 94x130mm, 94x180mm, 110x180mm, 130x180mm, 180x182mm, 180x254mm, 254x361mm
* Base height: 35.5mm, 57mm, 81mm
* Material: polystyrene or polycarbonate
* Base colour: yellow RAL1003 or grey RAL7035
* The enclosure lid is fastened to the base through 2/4/6 screws depending on the enclosure size.
* The enclosure lid may be supplied with or without holes.
* All enclosures with sizes other than 50x52mm, 65x50mm can be provided with a clear undrilled lid.
* Certifications: CE.
