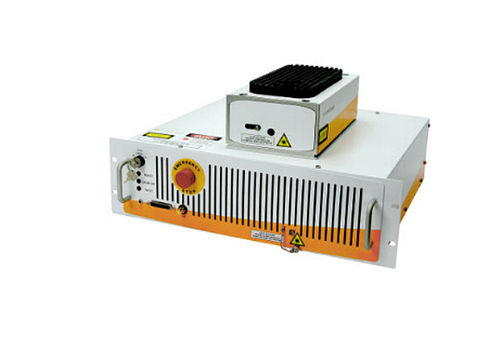

Pulsed laser PyroFlex™ 2 series

fibergreen

PyroPhotonics introduces the next generation of fiber laser systems for precision micro-processing applications. The PyroFlex™ 2 Series pulsed fiber laser platform is designed to be a versatile and user-friendly system that may be deployed in numerous OEM applications. PyroFlex™ 2 Series laser systems will be offered in the IR and green regions of the emission spectrum. Main Features: (IR Version) * Peak Power: 100W * MAXIMUM AVERAGE POWER: 2W * MAXIMUM PULSE ENGERGY: 30µJ * PULSE WIDTH: 2-120ns, turnable * REPETITION RATE: turnable, to 500kHz * Pulse-on-demand capability * Pulse-shaping software option * BEAM QUALITY M2 <1.1 Mechanical Parameters * POWER MODULE: (3u rACK MOUNTED) 19"W x 5.25"H x 16"D * LASER HEAD: 6"W x 4"H x 11"D Electrical Parameters * USB/RS232 interface * POWER SUPPLY: 85-260VAC, 47-63Hz Environmental Ratings * STORATE: -20 to 50oC, relative humidity 5 to 90% non-condensing * OPERATING: 15-45oC, relative humidity 5 to 80% non-condensing
