Rotary positioning stage RT-2 series
motorized1-axisminiature

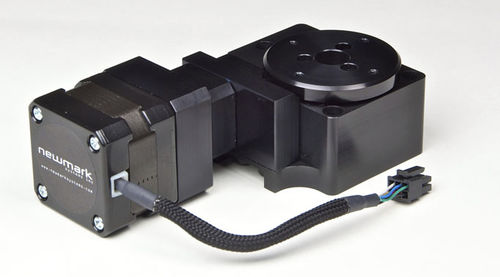

Rotary positioning stage - RT-2 series - Newmark Systems Inc - motorized / 1-axis / miniature
Rotary positioning stage - RT-2 series - Newmark Systems Inc - motorized / 1-axis / miniature
Rotary positioning stage - RT-2 series - Newmark Systems Inc - motorized / 1-axis / miniature - image - 2
Rotary positioning stage - RT-2 series - Newmark Systems Inc - motorized / 1-axis / miniature - image - 3
Add to favorites
Compare this product


Characteristics

Orientation
rotary
Type
motorized
Number of axes
1-axis
Other characteristics
miniature

Description

The RT-2 has a low profile coming in at just over 1.5" thick. The design takes advantage of a thrust bearing systems for the table movement. This design approach offers excellent stability and low cost. The RT-2 utilizes a worm gear drive with available gear ratios of 80:1 and 40:1. The 40:1 gear ratio will provide a higher output speed over the 80:1 gear ratio. The worm gear is preload to minimize the backlash in the gear train.
