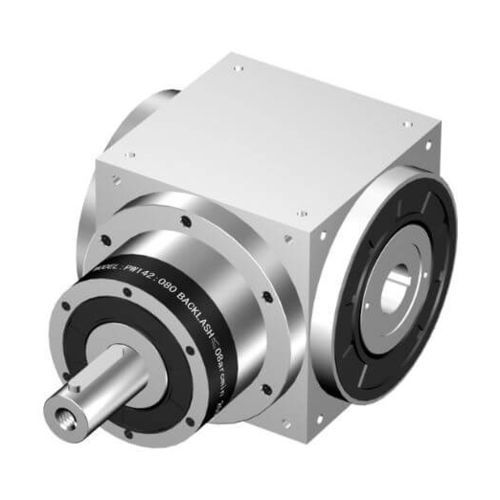

Spiral bevel gearbox PW-K2-OP1coaxialhollow-shaftmultiple-output
Add to favorites
Compare this product
Characteristics
- Type
- spiral bevel
- Shaft orientation
- coaxial
- Shaft configuration
- hollow-shaft, multiple-output
- Mounting
- shaft-mounted
- Configuration
- compact, modular
- Number of stages
- single-stage, two-stage, three-stage, four-stage
- Performance
- low-backlash
- Applications
- for industrial applications, for textiles, for servo motors, packaging machine, for medical applications, for the food industry, for pharmaceutical products
- Rotational speed
Min.: 1,500 rpm
(9,424.78 rad.min-1)Max.: 8,000 rpm
(50,265.48 rad.min-1)- Gear ratio
Min.: 3 unit
Max.: 512 unit
- Weight
Min.: 1.2 kg
(2.65 lb)Max.: 120 kg
(264.55 lb)
Description
PW-K2-OP1 Spiral Bevel Gearbox output with high stiffness bevel gears. The modularized design allows them to get abundant ratios. Multiple output options take convenience to your designing. Compact structure saved the limited space on the equipments.
Features:
Frame size from 65mm to 240mm
Standard Torque Capacity up to 2150N.m
