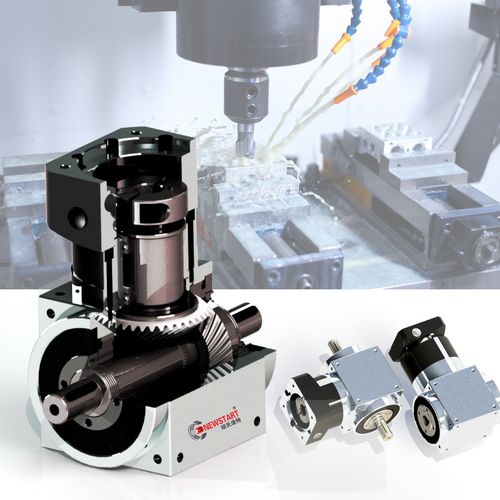

Bevel gear reducer PW110L1right anglehollow-shaftsolid-shaft
Add to favorites
Compare this product
Characteristics
- Type
- bevel
- Shaft orientation
- right angle
- Shaft configuration
- hollow-shaft, solid-shaft
- Torque
- 200 - 500 Nm, 50 - 100 Nm, 500 - 1000 Nm
- Number of stages
- single-stage, three-stage, four-stage, two-stage
- Performance
- precision, high-torque, high-efficiency, high load capacity, maintenance-free, high-rigidity
- Applications
- for robots, for twin-screw extruder, for single-screw extruder, for gear wheels, for automation, for the chemical industry, for construction vehicles, for heavy self-propelled vehicles, for conveyor belts, for rack-and-pinion drives
- Rotational speed
Max.: 4,000 rpm
(25,132.74 rad.min-1)Min.: 0 rpm
(0 rad.min-1)1,500 rpm
(9,424.78 rad.min-1)- Power
Max.: 3,000 W
(4.08 hp)Min.: 200 W
(0.27 hp)1,500,000 W
(2,039.43 hp)
Description
The unique design of PW Series will open up a vast range of applications in drive technology. Widely used in glass machinery, solar panel machinery, print machinery...
miniature gear for maximum precision
low backlash and high transmission accuracy
case-hardened bevel gear tooth system
friction-locked shaft-and-bevel-gear fit
energy-efficient through high level of efficiency of 98%
extremely light-weight aluminium housing
maintenance free through synthetic oil
Frame Size - 65mm, 75mm, 90mm, 110mm, 140mm, 170mm, 210mm, 240mm, 280mm
Output Torque - 24Nm-3200Nm
Ratio 1 stage - 1,2,4
Ratio 2 stage - 3,4,5,6,8,10
Ratio 3 stage - 9,12,15,16,20,25,30,32,40,50
Backlash 1 stage - <12 arc-min
Backlash 2 stage - <15 arc-min
Backlash 3 stage - <18 arc-min
