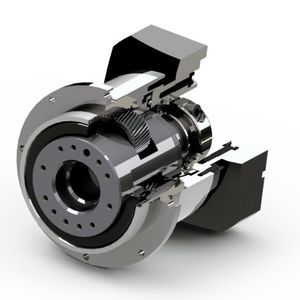

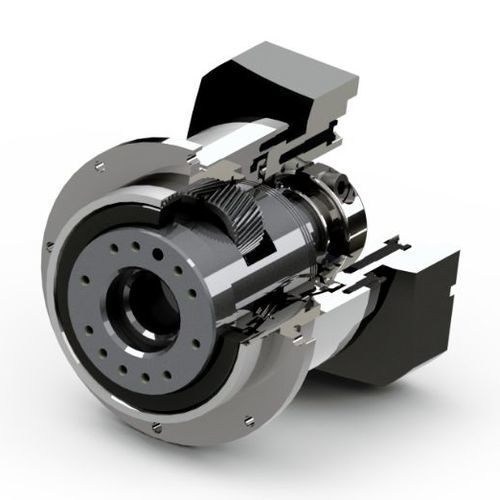

Planetary gearbox AD110helical gearcoaxialsolid-shaft
Add to favorites
Compare this product
Characteristics
- Type
- planetary, helical gear
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 200 - 500 Nm
- Mounting
- flange-mounted
- Configuration
- flange, modular
- Number of stages
- single-stage, two-stage, three-stage
- Performance
- high-precision, low-backlash
- Applications
- for industrial applications, for textiles, for servo motors, packaging machine, for medical applications, for the food industry, pharmaceutical products
- Other characteristics
- IP65
- Rotational speed
3,000 rpm, 6,000 rpm
(18,849.56 rad.min-1, 37,699.11 rad.min-1)- Gear ratio
Min.: 3 unit
Max.: 320 unit
- Weight
Min.: 7.8 kg
(17.2 lb)Max.: 11 kg
(24.25 lb)
Description
AD series Precision Inline Planetary Gearboxes are built with precision helical gears. The gears shape optimized by 3D Simulation technology. Single piece structured ring gear to minimize the assembling error accumulation. Whole piece planetary carrier with Roller bearings supported on each end taken large axial load capacity. They are best choice for the precision positioning applications as well as smooth running required.
Features:
Frame size from 47mm to 255mm
Standard Torque Capacity up to 2560N.m
Any mount positions
Flange shaft output
Tapered roller bearings can take Axial load up to 54000N
