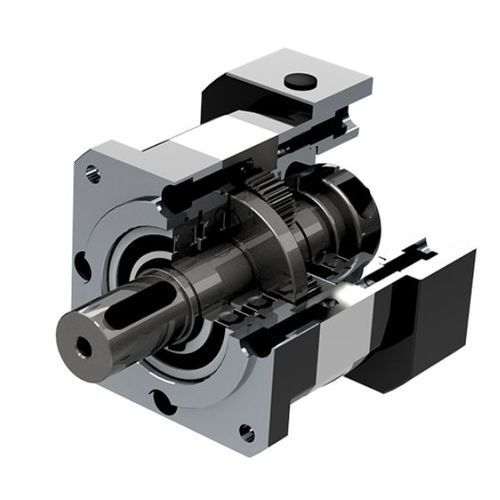

Planetary gearbox PS240coaxialsolid-shaftflange-mounted
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Mounting
- flange-mounted
- Configuration
- flange, modular
- Number of stages
- single-stage, two-stage, three-stage
- Performance
- precision, maintenance-free, low-backlash, high load capacity
- Applications
- transmission, for industrial applications, for textiles, packaging machine, for medical applications, for the food industry, for pharmaceutical products
- Rotational speed
1,500 rpm, 3,000 rpm
(9,424.78 rad.min-1, 18,849.56 rad.min-1)- Gear ratio
Max.: 512 unit
Min.: 3 unit
- Weight
Max.: 100 kg
(220.46 lb)Min.: 70 kg
(154.32 lb)
Description
PS Planetary Gearboxes are built with harden spur gears. The gears shape optimized by 3D Simulation technology. All gears grinded to achieve low backlash. They are most economical series and affordable for the applications which need precision transmission parts.
Features:
Frame size from 40mm to 240mm
Standard Torque Capacity up to 3910N.m
Low heat generation
Any mount positions
