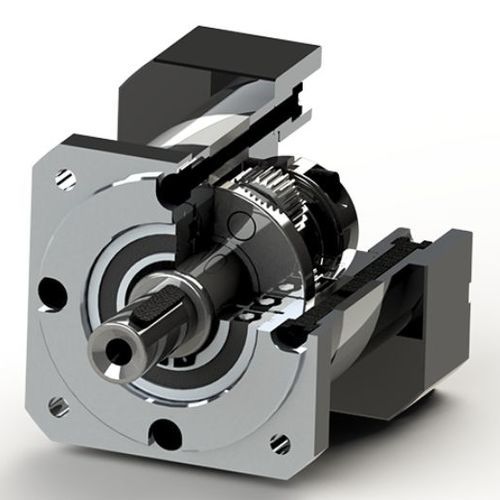

Planetary gearbox PF142coaxialsolid-shaft200 - 500 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 200 - 500 Nm, 500 - 1000 Nm
- Configuration
- compact, flange
- Number of stages
- single-stage, multi-stage
- Performance
- precision, high-efficiency, high-torque, maintenance-free
- Applications
- transmission, for textiles, for servo motors, for stepper motors, industrial
- Gear ratio
Min.: 3 unit
Max.: 512 unit
Description
Our PF Series is PL Series' Upgraded version. It can be connected directly to your installation without the need for an intermediate flange. The large deep groove ball bearing at the output can absorb large axial and radial forces. In the process, only little heat is generated, so reliable operations are assured even in complex production cycles.
Features
Low heat generation at highest speeds
Optimized output bearing
Square output flange
The highest dynamics in multiple axis systems
For any mounting position
Precise gearing
Frame Size -
40mm, 60mm, 70mm, 80mm, 115mm, 130mm, 142mm, 215mm
Output Torque - 12Nm-1152.5Nm
Ratio 1 stage - 3,4,5,6,7,8,10
Ratio 2 stage - 9,12,15,16,20,25,30,32,35,40,50
Ratio 3 stage - 60,64,80,100,125,140,150,200,320,512
Backlash 1 stage - P0<3 arc-min P1<5 arc-min P2<8 arc-min (excl. PF40)
Backlash 2 stage - P0<5 arc-min P1<8 arc-min P2<10 arc-min (excl. PF40)
Backlash 3 stage - P0<8 arc-min P1<10 arc-min P2<12 arc-min (excl. PF40)
