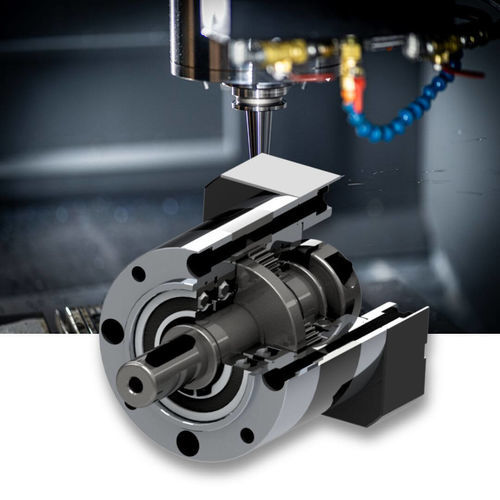

Planetary gearbox PL60/PLE60coaxialsolid-shafthollow-shaft
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft, hollow-shaft
- Torque
- 20 - 50 Nm
- Mounting
- shaft-mounted
- Configuration
- compact
- Number of stages
- single-stage, two-stage, three-stage
- Performance
- precision, high-efficiency, high-performance
- Applications
- transmission, for industrial applications, for automation, for belt conveyors, for servo motors, for stepper motors
- Other characteristics
- aluminum
- Gear ratio
Max.: 512 unit
Min.: 3 unit
Description
Economy planetary gearbox
The PL is notably light, extremely powerful, yet suitable for complex production cycles due to its low-friction bearing design and optimized lubrication. A genuine powerhouse at an attractive, fair price.
Fit national standard & NEMA standard. Accept custom making.
Servo Gearbox Database (PL series) : PL40-PL200
Frame Size - 40mm, 60mm, 80mm, 90mm, 120mm, 140mm, 160mm, 200mm
Output Torque - 12Nm-1152.5Nm
Ratio 1 stage - 3,4,5,6,7,8,10
Ratio 2 stage - 9,12,15,16,20,25,30,32,35,40,50
Ratio 3 stage - 60,64,80,100,125,140,150,200,320,512
Backlash 1 stage - P0<3 arc-min P1<5 arc-min P2<8 arc-min (excl. PL40)
Backlash 2 stage - P0<5 arc-min P1<8 arc-min P2<10 arc-min (excl. PL40)
Backlash 3 stage - P0<8 arc-min P1<10 arc-min P2<12 arc-min (excl. PL40)
