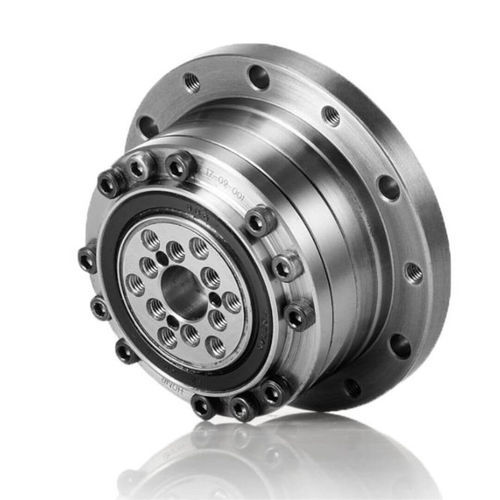

Strain wave gearbox NS-CS-14-xxx-1

parallel-shaftsolid-shaftsingle-stage

The Strain Wave Gear (harmonic) is a transmission that relies on a wave generator to generate controllable elastic deformation waves in flexible gears to achieve motion and power transmission. mainly to solve the urgent need of aerospace, robotic, and some special application motion agencies for reducers with compact structures, lightweight, small size, large reduction ratio, high transmission efficiency, and high transmission precision. we have successfully developed hundreds of Strain Wave Gear of different specifications and models, covering the intelligent manufacturing industry and meeting applications in different markets and fields such as aerospace, and industrial robots. NS-CS standard strain wave gear, the input shaft matches with the inner of the cam and is connected by a flat key. Features: Precision: 0 side clearance, near 0 backlash, backlash less than 10 arc seconds Easy to mount: standardized connection, excellent versatility; Durable: High-quality special steel adopted, and the specially optimized heat treatment, greatly improve the service life of the reducer; Stable: Low noise, low vibration, smooth operation, stable performance, safe and reliable; High load-bearing torque: Twice the torque of the traditional, involute harmonic reducer; Compact and light weighted: The length-to-diameter ratio of the flexible gear is as high as 1/2; Smooth transmission: Multiple teeth engaged simultaneously for smooth motion; High transmission accuracy: Transmission error ≤ 40 arcsec, backlash<10 arcsec
