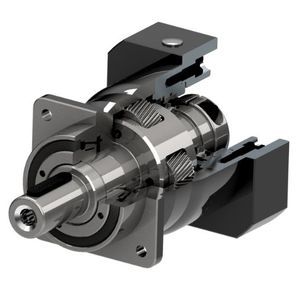

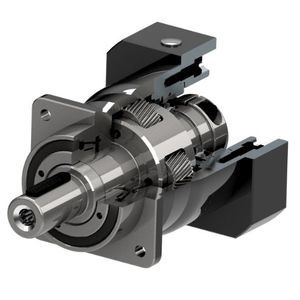

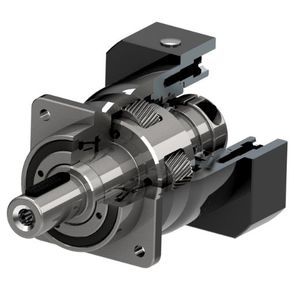

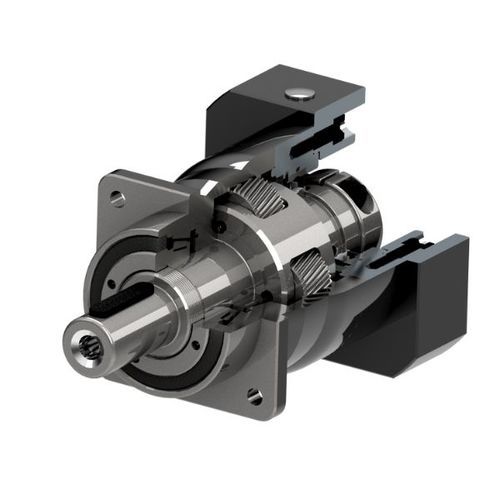

Planetary gear reducer AF60helical gearcoaxialsolid-shaft
Add to favorites
Compare this product
Characteristics
- Type
- planetary, helical gear
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Torque
- 20 - 50 Nm, 50 - 100 Nm
- Mounting
- shaft-mounted, flange-mounted
- Configuration
- compact, flange
- Number of stages
- single-stage, three-stage, two-stage, four-stage
- Performance
- precision, high-performance, low-noise, low-backlash, high-efficiency, maintenance-free, high-torque, high-rigidity
- Applications
- transmission, for servo motors, for gear wheels, for electric drive wheels, machine, for automation, for robotics, industrial, for machine tools, for food industry machinery, packaging machine, for electric motors, for DC motors, for high-power motors, electronic equipment, for laser applications
- Other characteristics
- combined, NEMA 23, universal, mechanical transmission, IP65, custom, high-quality
- Rotational speed
Min.: 3,000 rpm
(18,849.56 rad.min-1)Max.: 6,000 rpm
(37,699.11 rad.min-1)- Backlash
0.11 °
- Gear ratio
Min.: 3 unit
Max.: 320 unit
Description
AF series built with precision helical gears. The gears shape optimized by 3D Simulation technology. Single piece structured ring gear to minimize the assembling error accumulation. Whole piece planetary carrier with strong roller bearings supported on each end, taken large axial load capacity. They are best choice for the precision positioning applications which with big axial load added.
