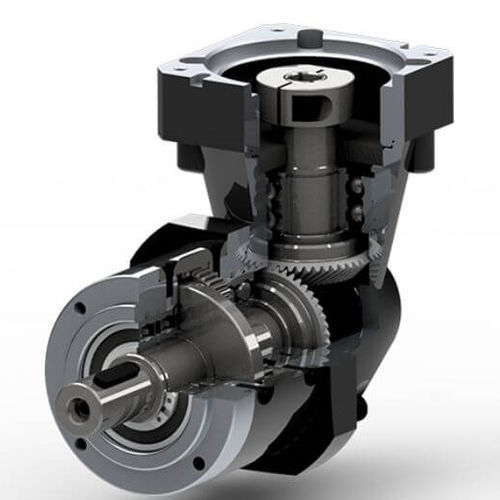

Right angle gearbox WPL200planetarysolid-shaftflange-mounted
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- right angle
- Shaft configuration
- solid-shaft
- Mounting
- flange-mounted
- Configuration
- flange, modular
- Number of stages
- single-stage, two-stage, three-stage
- Performance
- maintenance-free, low-backlash, high load capacity
- Applications
- transmission, for industrial applications, for textiles, for servo motors, packaging machine, for medical applications, for the food industry, for pharmaceutical products
- Rotational speed
1,500 rpm, 3,000 rpm
(9,424.78 rad.min-1, 18,849.56 rad.min-1)- Weight
Min.: 35 kg
(77.16 lb)Max.: 50 kg
(110.23 lb)
Description
WPL Right Angle Planetary Gearbox are built with harden spur gears. The gears shape optimized by 3D Simulation technology. All gears grinded to achieve low backlash. They are most economical series and affordable for the applications which need precision transmission parts.
Features:
Frame size from 40mm to 200mm
Standard Torque Capacity up to 1780N.m
Standard Ratio Availability from 3:1 up to 512:1
Low heat generation
Any mount positions
