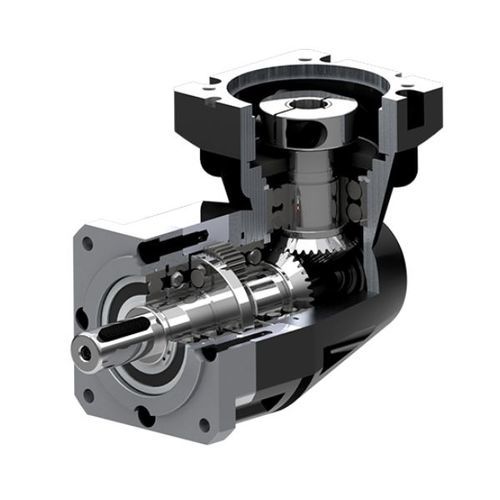

Right angle gearbox WPS70planetarysolid-shaftflange-mounted
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- right angle
- Shaft configuration
- solid-shaft
- Mounting
- flange-mounted
- Configuration
- flange, modular
- Number of stages
- single-stage, two-stage, three-stage
- Performance
- precision, maintenance-free, low-backlash, high load capacity
- Applications
- transmission, for industrial applications, for textiles, for servo motors, packaging machine, for medical applications, for the food industry, for pharmaceutical products
- Rotational speed
3,000 rpm, 6,000 rpm
(18,849.56 rad.min-1, 37,699.11 rad.min-1)- Gear ratio
Max.: 512 unit
Min.: 3 unit
- Weight
Max.: 3.2 kg
(7.05 lb)Min.: 2 kg
(4.41 lb)
Description
WPS Right Angle Planetary Gearboxes are built with harden spur gears. The gears shape optimized by 3D Simulation technology. All gears grinded to achieve low backlash. They are most economical series and affordable for the applications which need precision transmission parts.
Features:
Frame size from 40mm to 240mm
Standard Torque Capacity up to 3912N.m
Low heat generation
Any mount positions
Catalogs
No catalogs are available for this product.
See all of Newstart Planetary Gear Boxes Co.,Ltd.‘s catalogsOther Newstart Planetary Gear Boxes Co.,Ltd. products
WPS Right Angle Planetary Gearbox
