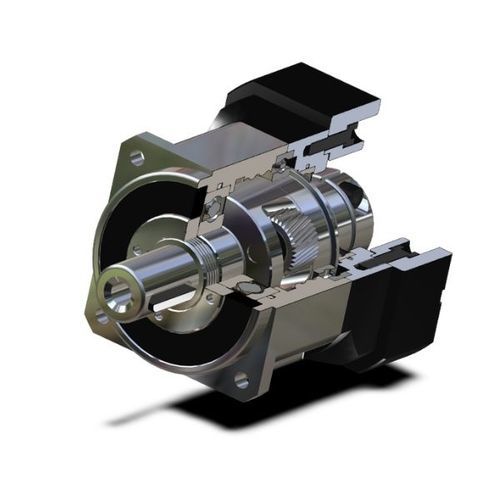

Planetary servo-gearbox AB42helical gearcoaxialsolid-shaft
Add to favorites
Compare this product
Characteristics
- Type
- planetary, helical gear
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Mounting
- flange-mounted
- Configuration
- flange, modular
- Number of stages
- single-stage, two-stage, three-stage
- Performance
- high-precision, low-backlash, high-performance, high load capacity
- Applications
- for industrial applications, packaging machine, for pharmaceutical products, for medical applications, for textiles, for the food industry
- Other characteristics
- high-quality, IP65
- Rotational speed
4,000 rpm, 8,000 rpm
(25,132.74 rad.min-1, 50,265.48 rad.min-1)- Gear ratio
Min.: 3 unit
Max.: 320 unit
- Weight
Min.: 0.6 kg
(1.32 lb)Max.: 1.1 kg
(2.43 lb)
Description
AB series high-precision planetary gearbox with innovative design features. The integrated nut in the output planetary frame eliminates axial clearance, ensuring superior torsional rigidity and robust radial and axial load-bearing capabilities. Crafted from high-quality 40Cr steel through heat forging, the gear components exhibit heightened strength, rigidity, and toughness. With true hardened helical gears and 3D simulation design analysis, our gearbox excels in high-precision applications, frequent start-stop operations, and scenarios with load variations, offering outstanding performance and extended lifespan.
Features:
Frame size from 42mm to 220mm
Standard Torque Capacity up to 2560N.m
Any mount positions
