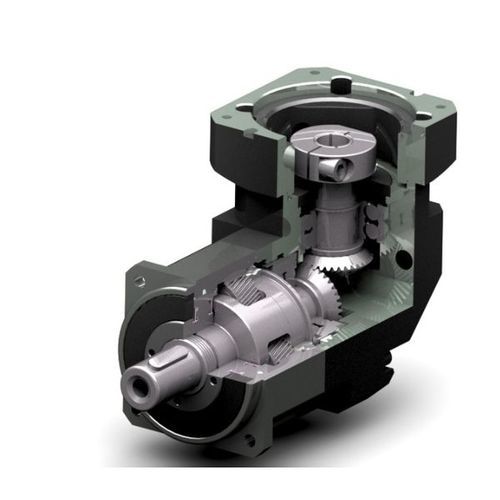

Right angle servo-gearbox ABR180planetaryhelical gearsolid-shaft
Add to favorites
Compare this product
Characteristics
- Type
- planetary, helical gear
- Shaft orientation
- right angle
- Shaft configuration
- solid-shaft
- Mounting
- flange-mounted
- Configuration
- compact, flange, modular
- Number of stages
- single-stage, two-stage, three-stage
- Performance
- high-precision, low-backlash, high-performance, high load capacity
- Applications
- for servo motors, for industrial applications, packaging machine, for pharmaceutical products, for medical applications, for textiles, for the food industry
- Other characteristics
- high-quality, IP65
- Rotational speed
1,500 rpm, 3,000 rpm
(9,424.78 rad.min-1, 18,849.56 rad.min-1)- Gear ratio
Max.: 320 unit
Min.: 3 unit
- Weight
Max.: 65 kg
(143.3 lb)Min.: 45 kg
(99.21 lb)
Description
ABR Precision Right Angle Gearbox, designed for space efficiency with a compact right-angle structure. Crafted from high-quality 40Cr steel, it ensures superior strength and durability. The true hardened helical gears, made from premium 20CrMnTi alloy steel, offer exceptional performance with an HRC62 hardness. Ideal for applications with limited space, it maintains the same reliability, precision, and excellence found in our planetary gearbox series, making it the optimal solution for constrained installations.
Features:
Frame size from 42mm to 220mm
Standard Torque Capacity up to 2560N.m
Any mount positions
