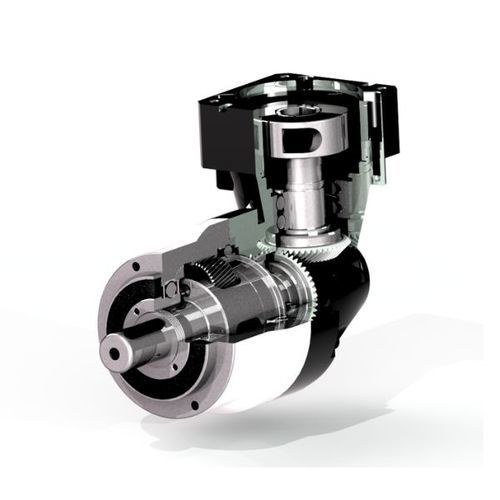

Right angle servo-gearbox AER50planetarysolid-shaft50 - 100 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- right angle
- Shaft configuration
- solid-shaft
- Torque
- 200 - 500 Nm, 50 - 100 Nm, 100 - 200 Nm
- Configuration
- compact
- Number of stages
- single-stage
- Performance
- high-performance, precision, low-backlash, maintenance-free, high-torque, high-efficiency, high-rigidity, low-noise, high-speed, high-capacity, high load capacity
- Applications
- for industrial applications, for servo motors, transmission, shaft, machine, for machine tools, for cutting machine, for automation, for robotics, for machines, for pharmaceutical products, for stepper motors, for vehicles, for agricultural machinery, for marine applications
- Other characteristics
- high-quality, rugged, combined, custom, NEMA 23, washdown, double, IP65
- Rotational speed
1,500 rpm
(9,424.78 rad.min-1)Max.: 3,000 rpm
(18,849.56 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Backlash
0 grad
Max.: 0 grad
Min.: 0 grad
- Gear ratio
36 unit
Max.: 120 unit
Min.: 3 unit
- Weight
5 kg
(11.02 lb)Max.: 5 kg
(11.02 lb)Min.: 1 kg
(2.2 lb)
Description
AER series Precision Right Angle Gearboxes are built with precision helical gears. The gears shape optimized by 3D Simulation technology. Single piece structured ring gear to minimize the assembling error accumulation. Whole piece planetary carrier with bearings supported on each end taken large radial load capacity. They are best choice for the precision positioning applications as well as smooth running required.
