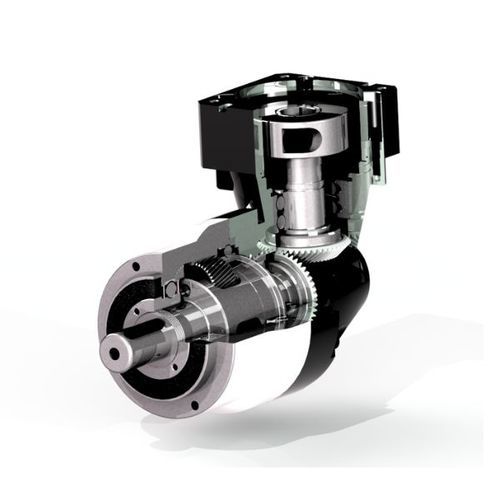

Right angle gearbox AER235planetaryhelical gearsolid-shaft
Add to favorites
Compare this product
Characteristics
- Type
- planetary, helical gear
- Shaft orientation
- right angle
- Shaft configuration
- solid-shaft
- Mounting
- flange-mounted
- Configuration
- flange, modular
- Number of stages
- single-stage, two-stage, three-stage
- Performance
- precision, maintenance-free, low-backlash, high load capacity
- Applications
- for industrial applications, for textiles, for servo motors, packaging machine, for medical applications, for the food industry, for pharmaceutical products
- Other characteristics
- IP65
- Rotational speed
1,000 rpm, 2,000 rpm
(6,283.19 rad.min-1, 12,566.37 rad.min-1)- Gear ratio
Min.: 3 unit
Max.: 320 unit
- Weight
Min.: 80 kg
(176.37 lb)Max.: 108 kg
(238.1 lb)
Description
AER series Precision Right Angle Gearboxes are built with precision helical gears. The gears shape optimized by 3D Simulation technology. Single piece structured ring gear to minimize the assembling error accumulation. Whole piece planetary carrier with bearings supported on each end taken large radial load capacity. They are best choice for the precision positioning applications as well as smooth running required.
Features:
Frame size from 50mm to 235mm
Standard Torque Capacity up to 2560N.m
Any mount positions
Catalogs
No catalogs are available for this product.
See all of Newstart Planetary Gear Boxes Co.,Ltd.‘s catalogsOther Newstart Planetary Gear Boxes Co.,Ltd. products
AER Precision Right Angle Gearbox
