Planetary gearbox ADR series coaxialsolid-shaftflange-mounted
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- solid-shaft
- Mounting
- flange-mounted
- Configuration
- compact, flange
- Number of stages
- single-stage, two-stage, three-stage
- Performance
- low-backlash, high load capacity
- Applications
- transmission, for industrial applications, for textiles, packaging machine, for medical applications, for the food industry, for pharmaceutical products
- Other characteristics
- IP65
- Rotational speed
Min.: 1,000 rpm
(6,283.19 rad.min-1)Max.: 8,000 rpm
(50,265.48 rad.min-1)- Gear ratio
Min.: 3 unit
Max.: 320 unit
- Weight
Min.: 0.9 kg
(1.98 lb)Max.: 130 kg
(286.6 lb)
Description

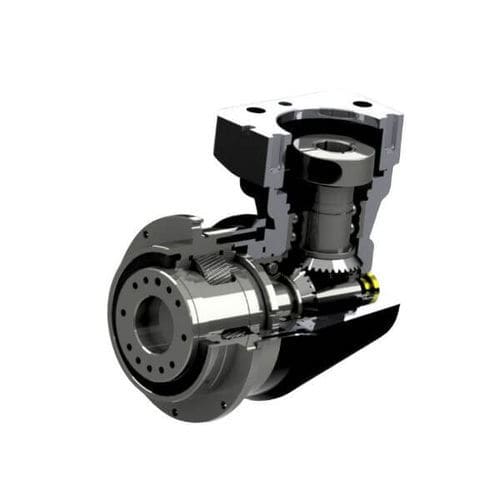

ADR Series, a right-angle structured gearbox designed to optimize space utilization. Featuring a compact flange output for efficient torque transmission, it minimizes installation space while ensuring reliable performance. The integrated nut in the output planetary frame eliminates axial clearance, enhancing torsional rigidity and load-bearing capabilities with a large-span bearing arrangement. Crafted from high-grade 20CrMnTi alloy steel, the true hardened helical gears reduce noise through 3D simulation design, ensuring a prolonged operational lifespan. Ideal for precision applications with frequent start-stop operations and diverse spatial constraints, the ADR Series offers a versatile and efficient solution.
Features:
Frame size from 47mm to 255mm
Standard Torque Capacity up to 2560N.m
Any mount positions
Flange shaft output
