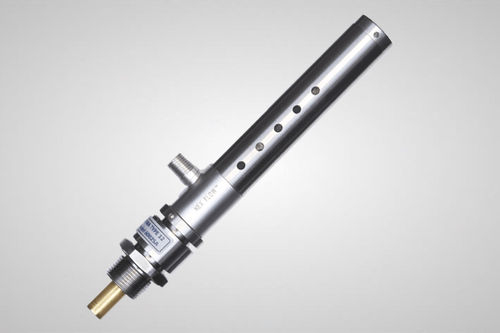

Air cooler Frigid-X

for electrical cabinetscompactstainless steel

The Frigid-X series Cabinet Enclosure Cooler for electronic control panels provides a low cost method of both purging and cooling electrical and electronic control panels by using a stainless steel vortex tube to create cold air from ordinary compressed air. Our Cabinet Enclosure Coolers are compact and can be installed in minutes through a standard electrical knockout. They are also made from stainless steel to hold up in rain, snow, humidity, general outdoor use, and corrosive environments. Features / Advantages Low in cost Compact No CFCs Fast installation Stabilize enclosure temperature and humidity Virtually maintenance free (No Moving Parts) Mounts in a standard electrical knockout Stops heat damage and nuisance tripping Eliminates fans and filters Prevents dirt contamination by keeping enclosure at positive pressure Units applicable to all environments including high temperature to 200ºF Cabinet enclosure coolers come with a 5 micron filter with an automatic drain (except for the 316L stainless steel units) for the compressed air supply to insure clean, dry air and an air distribution kit to circulate the cold air inside the enclosure for even cooling. cabinet enclosure coolers are available with or without thermostat control. When constant cooling and a constant positive purge is required we recommend the continuous operating version without the thermostat and solenoid valve. The cooling effect can be controlled by adding a regulator in line to reduce pressure for reduced cooling when it is not required and to conserve energy.
