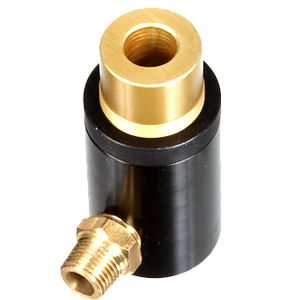

Cooling nozzle 45002

blow-offcompressed airstraight jet

Nex Flow™ Air Jets are designed to reduce compressed air consumption and noise levels while maintaining laminar flow for strong blow off force. They entrain large volumes of surrounding air through the Jet (similar to Air Amplifiers) and are more efficient flow amplifiers than Air Nozzles. They cover a larger blow off target than a Nozzle and are ideal for part ejection. An air nozzle provides a point force, while the Air Jet acts more like a “hand” and covers a larger area in blow off coverage. This can be an advantage in part ejection where two nozzles are normally required to “direct” the ejected part while only one jet is needed. This can dramatically reduce energy required as well as have a lower footprint on the machine. All Nex Flow™ Air Jets meet OSHA standard CFR 1910.242(b) for dead end pressure. Noise levels are dramatically reduced in addition to lowering energy use. Applications Include: Part Ejection Cool small parts Part Drying Chip Removal Air Assist Model 45001/45002 – High Flow Air Jet and High Force Air Jet are physically the same size. The only difference is a larger exit opening in the High Flow version for the amplified air flow. The high flow system is used more for cooling and light blow-off while the high force version is used mainly for heavier blow-off applications. Material is anodized aluminum.
