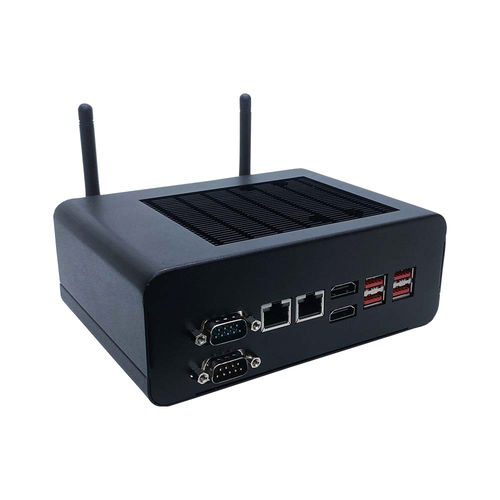

Expansion PC NTWB512 V100boxIntel® Core i5Intel® Core i7
Add to favorites
Compare this product
Characteristics
- Type
- expansion, box
- Processor
- Intel® Core i5, Intel® Core i7, Intel® Core i3, 12th Generation Intel® Core™
- Ports
- HDMI, DDR4 SO-DIMM, RS-232, RJ45, USB 3.2, SATA, Mini PCIe, M.2
- Domain
- industrial
Description
★ GbE LAN Port x2
★ SATA 6Gb/s Port x1
★ Realtek® Audio Codec
★ Metal Cabinet
★ Made in Taiwan, 3 Years Warranty
System specifications
Network - Intel® i2 26V Gbe LAN Ports x2
Storage - SATAx1, M.2 M-key (SATA 6Gb/s) x1, Full-size Mini PCIe Slot x1
Video Output - Intel® Iris Xe Graphics HDMI 2.0 Port x2, Max. Resolution 4096x2160 @60Hz
Sound Chip - Realtek® Audio CODEC
Expansion Slots - 2242 M.2 M-Key (SATA 6Gb/s) x1
Rear I/O -
HDMI x2
RJ45 LAN Ports x2
USB 3.2 x4
RS232 x2
Operating Temp. - 0~60℃
Storage Temp. - -40~85℃
Operating Humidity - 0~90% (non-condensing)
Storage Humidity - 0~95% (non-condensing)
Power Input - 9~36VDC-in
Catalogs
NTWB512 V100
7 Pages
