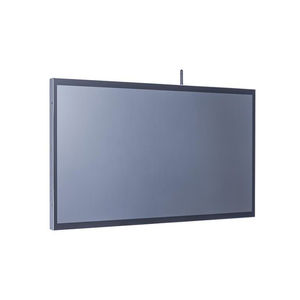

LED backlight panel PC NTAP170-2-Q2 V500
PCAP capacitive touch screenmultitouch screen17"

LED backlight panel PC - NTAP170-2-Q2 V500 - Nextech - PCAP capacitive touch screen / multitouch screen / 17"
LED backlight panel PC - NTAP170-2-Q2 V500 - Nextech - PCAP capacitive touch screen / multitouch screen / 17"
LED backlight panel PC - NTAP170-2-Q2 V500 - Nextech - PCAP capacitive touch screen / multitouch screen / 17" - image - 2
LED backlight panel PC - NTAP170-2-Q2 V500 - Nextech - PCAP capacitive touch screen / multitouch screen / 17" - image - 3
LED backlight panel PC - NTAP170-2-Q2 V500 - Nextech - PCAP capacitive touch screen / multitouch screen / 17" - image - 4
LED backlight panel PC - NTAP170-2-Q2 V500 - Nextech - PCAP capacitive touch screen / multitouch screen / 17" - image - 5
Add to favorites
Compare this product

Go to the Nextech website for more information

Characteristics

Screen type
LED backlight, PCAP capacitive touch screen, multitouch screen
Display size
17"
Resolution
1280 x 1024
Processor
Quad Core Cortex A17, Rockchip RK3288 SoC
Memory
DDR3 SDRAM
Operating system
Android
Applications
industrial
Protection level
antibacterial
Other characteristics
wireless, WiFi, high-brightness, outdoor
Memory size

Min.: 2 GB

Max.: 32 GB

Description

★ On Board 8G Flash ROM (Max. upgraded to 32G) ★ Micro SD Card Slot x1 (Max. to 64G) ★ Android 10.0 ★ 7H Hardness Tempered Cover Glass ★ Metal Cabinet with Diverse Combine Options ★ Made in Taiwan, 3 Years Warranty ★ Optional AG Coating/Antibacterial/Privacy Filter Surface Treatment System specifications GPU Chip - Mali T764 GPU Sound Chip - ES8316 2 Channel HD Audio Physical Network - 1x GbE Lan port (RJ45) Wireless Network - IEEE 802.11b/g/n 2.4G WIFI and Blue Tooth v2.1+EDR/V3.0/V3.0+HS/V4.0 OS - Android 10.0 Display Specifications Panel Process - TN Type, Normally Black Visible Area - 337.9x270.3 mm Aspect Ratio - 4:3 Color Depth - 16.7M Colors Brightness (nits) - 250/350/1000/1500 nits Contrast Ratio - 1000:1 Pixel Pitch - 0.264x0.264 mm Response Time - 5 msec. Viewing Angle - 170°/160° min. Panel lifetime - >50000 HRS Operating Temp. - 0°~50°C Storage Temp. - -20°~60°C
