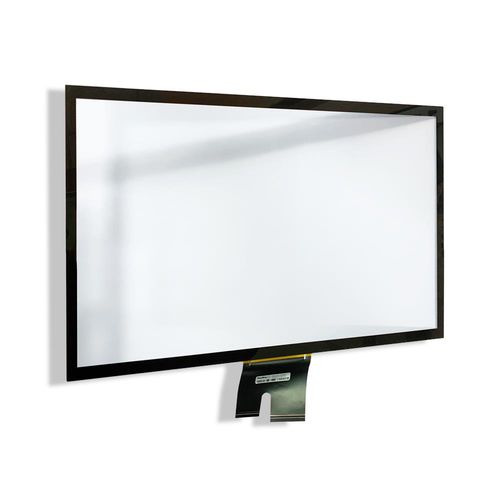

Display module with PCT touch screen TP-185P0A0CW-003

18.5"RS-232

It is bonded with a 1.1 mm, 7H hardness, Soda lime Tempered cover lens , complies IK rating The structure of TP-185P0A0CW-003 is “G/G”, op tional AG coating. It is designed by Nextech Co.,Ltd. Specifications Input Method - Finger or Nextech active touch stylus. Average Transmittance - >85% Accuracy - 2.5mm each target, 10% Jitter Interface - USB Dimensions Outline of Cover Lens - 430.20x254.50(±0.3) mm Dimensions of Sensor - 411.80x248.10(±0.3) mm Viewing Area - 410.64x231.24(±0.3) mm Active Area - 411.80x232.40(±0.3) mm Thickness of Cover Lens - 0.7(±0.2) mm Total Thickness - 2.75(±0.2) mm Environmental Characteristic - Temperature - Humidity Operating - -20~70℃ - 0~90%RH Storage - -30~80℃ - 0~90%RH
