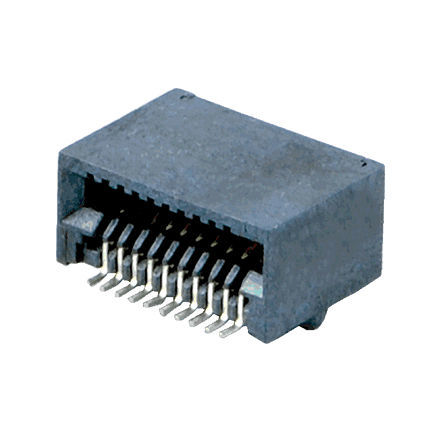

Data connector Z-8270000000000SFPSMTcurrent
Add to favorites
Compare this product
Characteristics
- Type
- data
- Format
- SFP, SMT
- Electrical characteristics
- current, AC, voltage
- Material
- plastic, copper, alloy
- Product applications
- tape, industry
- Primary current
0.5 A
- Voltage
30 V
- Pitch
0.8 mm
(0.031 in)- Operating temperature
Max.: 85 °C
(185 °F)Min.: -55 °C
(-67 °F)
Description
Designs are based on the industry standard SFP Multi-Source Agreement (MSA).The SFP board mount connector is 20 position and 0.8mm pitch.High Speed Contact Design.High temp and IR reflow compatible versions are available.
Insulator:High temp Themoplastic, UL 94V-0, black
Contact:Copper alloy with Au plated
Contact Resistance:20mΩ Max
Insulator Resistance:1000 M
Insertion Force:40N Max
Extraction Force:11.5N Max
Mechanical Operations:100 cycles
20 Pins, Black, 15u'' Gold(Au), SMT, High Temperature Plastic, Tape & Reel
20 Pins, Black, 15u” Gold(Au), SMT, High Temperature Plastic, Tray
20 Pins, Black, 30u” Gold(Au), SMT, High Temperature Plastic, Tape & Reel
20 Pins, Black, 30u” Gold(Au), SMT, High Temperature Plastic, Tray
