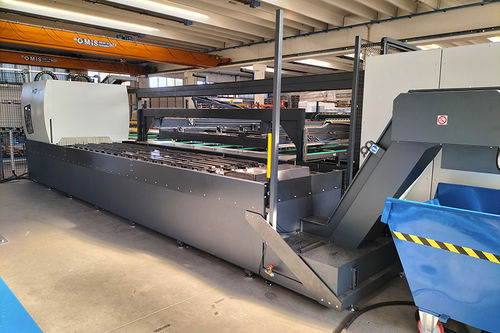

CNC drilling machine

for rails

Multiple drilling machine with automatic loading/unloading of the product; The work: System designed for drilling, reaming, tapping and holes counterbore; All processing occurs by means of four spindles with automatic tool change. Profiles: The machinable profiles are all kinds of linear rails with a series of holes in the middle pitch, or profiles of various types (round and square tubes, bars, in the drawing). Performance: Excellent performance of production due to the simultaneous processing of four profiles (raw parts), the automatic locking and automatic loading / unloading Main machine specifications: 28 seats tool magazine N# 4 spindles Spindle speed 5000 r/min X axis speed 60 mt/min Z axis speed 30 mt/min S axis motor 7.5 kw Clamping device with automated tightening with possibility to adjust the pressure and setable opening course Automatic product cleaning Automatic clamping device cleaning
